When it comes to heavy-duty industrial heat treatment, precision, efficiency, and reliability aren’t just goals—they are absolute necessities. At JR Furnace, we consistently push the boundaries of thermal engineering. We are proud to showcase one of our flagship achievements: the custom manufacturing, commissioning, and installation of our state-of-the-art Double Door Double Bogie Electric Furnace.
Designed specifically for high-capacity annealing and normalizing applications, this powerhouse is built to withstand continuous-duty industrial operations while delivering unparalleled temperature uniformity.
A Firsthand Look at Scale and Precision

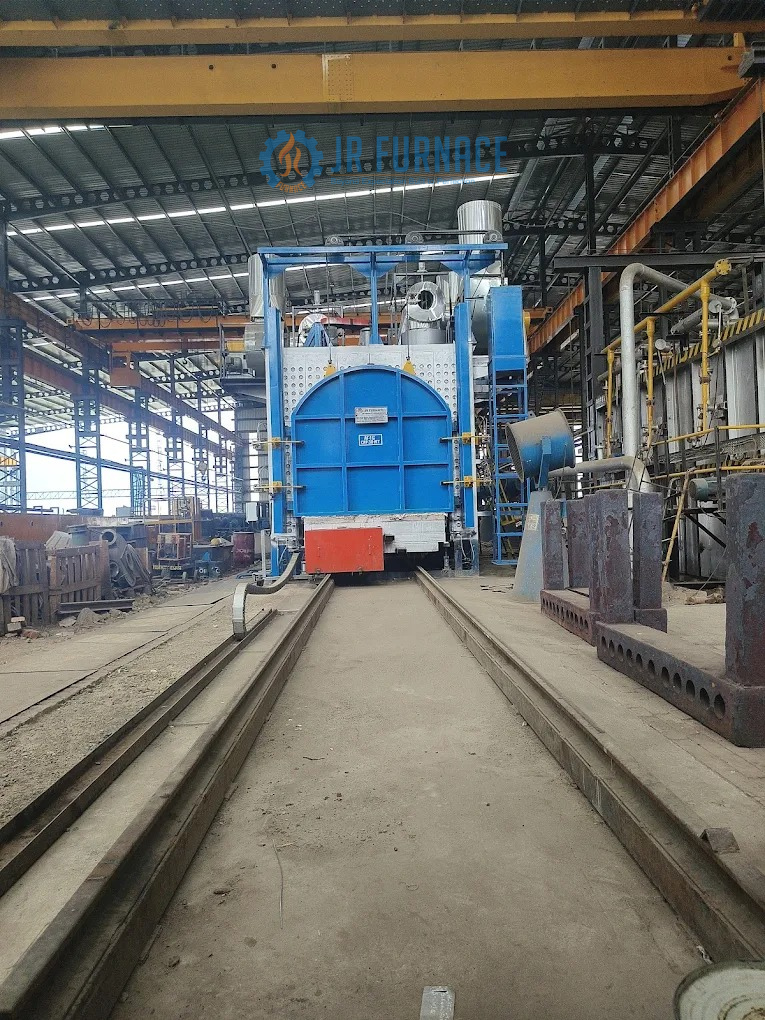

As seen in the installation image Double Door Double Bogie Electric Furnace, this massive furnace is engineered for seamless integration into heavy industrial workflows. The robust track system and heavy-duty front door mechanism highlight the rugged build quality required to handle massive industrial loads day in and day out.
Key Technical Specifications
To give you an idea of the sheer scale and capability of this thermal processing giant, here is a breakdown of its core engineering data:
| Feature | Technical Specification |
| Application | Annealing & Normalizing |
| Chamber Size (Useful) | 2300 mm (W) × 1500 mm (H) × 7700 mm (L) |
| Processing Capability | Rods from Ø16 mm to Ø500 mm (Lengths up to 7.5 m) |
| Batch Capacity | 40 Tons |
| Max Operating Temperature | 1150°C |
| Total Connected Load | 549 kW |
| Heating & Cooling Rates | Heating: Up to 100°C/hr | Cooling: Up to 70°C/hr |
What Makes This Furnace a Game-Changer?
1. Superior Thermal Uniformity & Control
Achieving consistent metallurgical properties across a 40-ton batch requires absolute control. This furnace features a three-zone heating system paired with four VFD-controlled recirculation fans to guarantee that temperature uniformity is maintained within a strict ±5°C throughout the entire working zone.
2. Premium Global Components for Longevity
We don’t compromise on component quality. That’s why this furnace is equipped with:
Kanthal APM Sinusoidal Heating Elements (Sweden): Positioned strategically on the side walls and roof, these world-class elements ensure optimum heat distribution and an exceptionally long service life.
SEW Germany Geared Motors: Reliable, heavy-duty motors drive the precise movements of the massive double doors and bogies.
Rittal Control Panel: A floor-mounted, dust-proof control panel that offers complete automation, advanced monitoring, and comprehensive protection features.
3. High-Efficiency Insulation & Sealing
Energy efficiency is vital for high-load industrial operations. This furnace utilizes premium Murugappa high-density ceramic fibre insulation, featuring 350 mm modules backed by a 50 mm backup blanket insulation. To prevent heat loss, the two motorized bogies are engineered with an advanced pneumatic sealing arrangement for maximum heat retention.
4. Advanced Cooling & Safety Systems
For controlled thermal cycling, the furnace integrates an automatic cooling system equipped with pneumatic dampers and cooling blowers. To protect vital machinery during high-temperature operations, the recirculation fans feature a specialized water-cooled fan bearing system.
The JR Furnace Advantage
This successful commissioning highlights JR Furnace’s commitment to delivering turn-key, high-performance thermal solutions. Whether you are processing massive 7.5-meter rods or requiring strict metallurgical control for critical industrial components, our custom-engineered furnaces are built to deliver.
