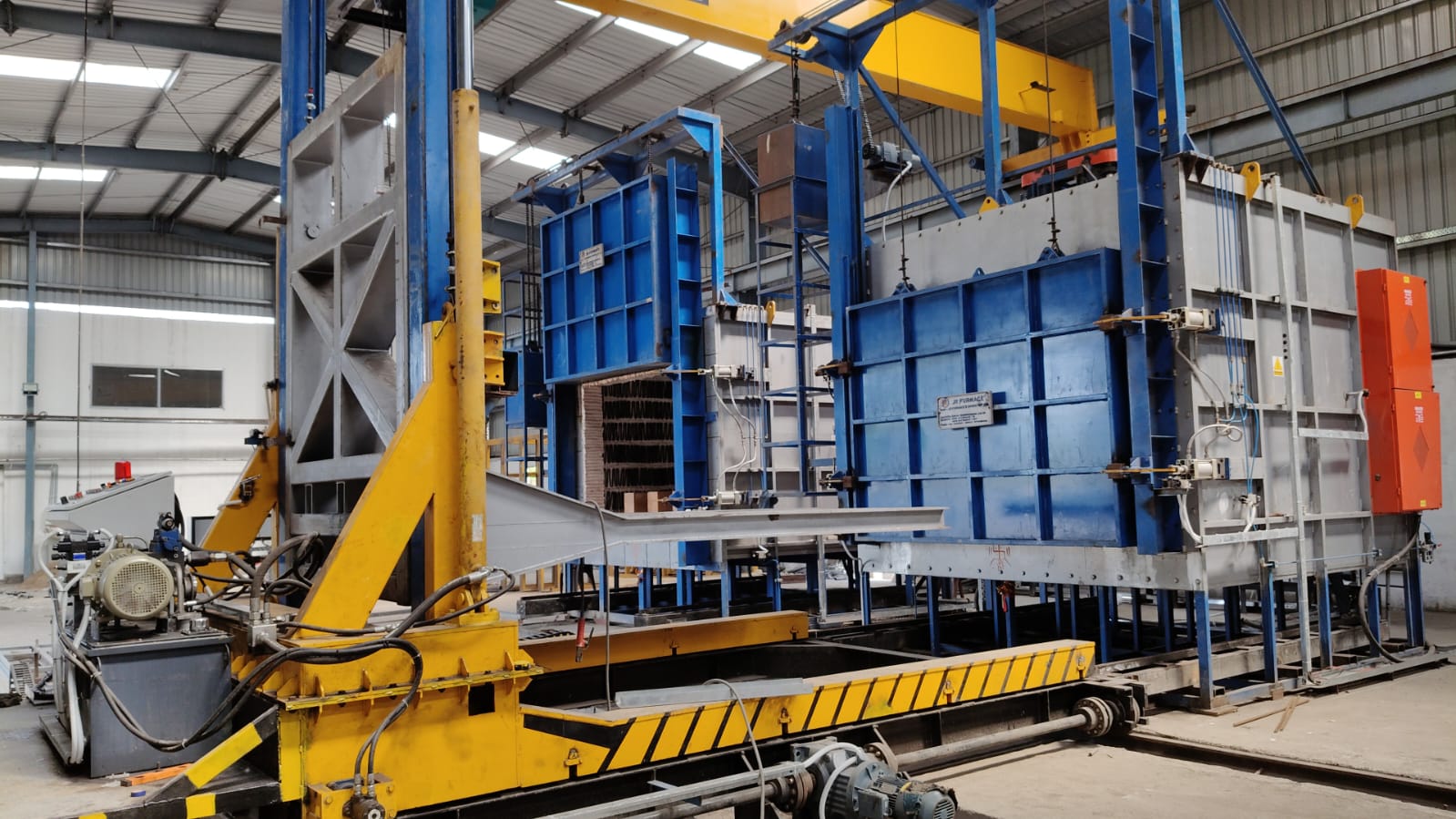

At JR Furnace & Ovens (P) Ltd, we are proud to announce the successful supply of a Grooved-Type Hardening & Tempering Furnace System with a 10 Ton capacity, designed specifically for processing alloy steel components. This state-of-the-art furnace package includes not just the hardening and tempering units, but also a automated loading/unloading rail-bound charging machine, a quenching tank, with PLC and SCADA system , making it a complete end-to-end heat treatment solution.
Scope of Supply
The complete system supplied consists of:
- Electrically Heated Hardening Furnace
- Electrically Heated Tempering Furnace
- Rail-Bound Charging Machine
- Quenching Tank
- Charge Loading and Unloading Station
This integrated system ensures a smooth, reliable, and efficient workflow for hardening, tempering, and quenching operations of alloy steel components.
Hardening Furnace
The Grooved Hearth Electrically Heated Hardening Furnace is designed for precision heat treatment with the following features:
- Maximum Operating Temperature: 1100°C
- Temperature Uniformity: ±5°C
- Rugged furnace construction for long life and reliability
- Uniform heat distribution with efficient energy utilization
This furnace enables alloy steel components to achieve the required hardness while maintaining structural integrity.
Tempering Furnace
The Hot Air Re-Circulating Tempering Furnace is engineered to refine the mechanical properties of hardened components.
- Temperature Uniformity: ±3°C
- Ensures controlled reheating and cooling
- Enhances ductility and reduces brittleness of alloy steels
By integrating hardening and tempering in a single workflow, manufacturers achieve high-quality, stress-free, and durable components.
Charging Machine
- A rail-bound charging machine was supplied to automate the loading and unloading process by PLC and SCADA system..
- Designed for heavy-duty foundry operation
- Quenching delay speed: achieved within 45 seconds, ensuring optimum hardness quality
- Built from rolled steel sections, welded and braced for rigidity
- Fork travel chains aligned and supported for long-lasting, smooth operation
This high-performance charging system ensures efficiency, safety, and reduced human intervention in handling heavy loads.
Quenching System
- The pit-type water quench tank is designed with:
- Centrifugal agitators system
- Discharge manifold for controlled water flow
This ensures rapid cooling of alloy steel components, enhancing the hardness and microstructure uniformity.
Advantages of the Grooved-Type Hardening & Tempering Furnace System
✔ Complete automated solution for hardening and tempering alloy steel
✔ High temperature uniformity for consistent quality output
✔ Reduced cycle time with 45-second quenching delay
✔ Rugged, heavy-duty design for long life and durability
✔ Integrated PLC-based automation for precision control and safety
Applications
This advanced furnace system is ideal for:
- Automotive Industry – hardening and tempering of shafts, gears, and components
- Steel & Foundry Industry – processing alloy steels and forged components
- Railways & Heavy Engineering – heat treatment of high-strength components
- Aerospace & Defense – components requiring high precision and controlled hardness
- JR Furnace – Leading the Way in Industrial Heat Treatment Solutions
With over 500+ successful installations worldwide, JR Furnace has established itself as a trusted leader in industrial furnaces and ovens. Our Grooved Hearth Hardening & Tempering Furnace System is another milestone in our journey of delivering world-class heat treatment equipment.
We continue to innovate and deliver customized solutions to industries including automotive, aerospace, railways, defense, power, steel, and conductor industries.
Conclusion
The commissioning of this 10-Ton Grooved-Type Hardening & Tempering Furnace with Quenching Facility demonstrates JR Furnace’s capability to design, manufacture, and supply turnkey furnace systems that meet global quality standards.
This furnace system is not just about hardening and tempering — it’s about delivering efficiency, safety, and unmatched performance for the future of industrial heat treatment.
