Annealing is a critical heat treatment process that transforms the physical and sometimes chemical properties of materials, enhancing ductility and reducing hardness for improved workability.

Annealing Furnaces

This method involves heating the material above its recrystallization temperature, maintaining it for a specific duration, and then carefully controlling the cooling process. The cooling rate varies depending on the type of metal; for instance, steel is often allowed to cool in still air, while metals like copper, silver, and brass can be either gradually cooled in air or rapidly quenched in water.

As the material is heated, atoms migrate within the crystal lattice, leading to a reduction in dislocations, resulting in changes to ductility and hardness. Upon cooling, the heat-treated material undergoes recrystallization. The crystal grain size and phase composition are influenced by the heating and cooling rates, determining the material’s final properties.

Subsequent hot or cold working of the metal alters its structure, necessitating further heat treatments to achieve desired properties. Knowledge of material composition and phase diagrams is crucial in tailoring heat treatments to soften metals, preparing them for subsequent processes like forming, shaping, and stamping, while also preventing brittle failure.

In the annealing furnace, the material is heated above its recrystallization temperature and then carefully cooled after maintaining this temperature for an appropriate duration. During this process, atoms diffuse within the crystal lattice, reducing dislocations and altering the sample’s ductility and hardness properties. Recrystallization occurs as the sample cools, and the increased rate of diffusion due to heating facilitates the redistribution and elimination of dislocations within the sample.

Also read : Energy Efficiency in Annealing Furnaces: Strategies for Reducing Costs and Emissions

The annealing furnace process consists of three crucial stages: recovery, recrystallization, and grain growth.

In the recovery stage, which takes place at lower temperatures, the material undergoes softening as linear defects called dislocations and the internal stresses they induce are removed.

Moving to the recrystallization stage, new strain-free grains form and grow, replacing those removed during the recovery stage.

If annealing continues, the grain growth stage follows the completion of recrystallization. In this phase, the material’s microstructure coarsens, potentially causing a loss of some strength. Additional heat treatment may be necessary to address this.

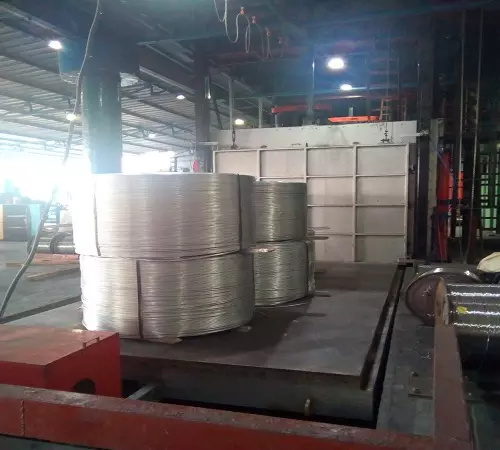

JR FURNACE provides a comprehensive range of Aluminium Coil/Foil Annealing Furnaces catering to the aluminum industries, with capacities of up to 80 MT per batch. These furnaces can be either Electrically Heated or Gas Fired, and the design can be tailored as Fixed Hearth or Bogie Hearth, depending on customer requirements. In the fixed hearth furnace, a hydraulically/electro-mechanically driven charging machine loads aluminum coils/foils onto the charge carrier. Alternatively, for the bogie hearth furnace, an EOT crane assists in loading the coils/foils onto the bogie. After completing the annealing cycle, discharging machines for the fixed hearth furnace or EOT cranes for the bogie hearth furnace are employed to unload the foils/coils.

๐„๐ฅ๐ž๐œ๐ญ๐ซ๐ข๐œ ๐€๐ฅ๐ฎ๐ฆ๐ข๐ง๐ฎ๐ฆ ๐‚๐จ๐ข๐ฅ ๐€๐ง๐ง๐ž๐š๐ฅ๐ข๐ง๐  ๐…๐ฎ๐ซ๐ง๐š๐œ๐ž

๐Œ๐ž๐ฅ๐ญ๐ข๐ง๐  ๐Œ๐š๐ญ๐ž๐ซ๐ข๐š๐ฅ: Coil

๐๐จ๐ฐ๐ž๐ซ ๐’๐จ๐ฎ๐ซ๐œ๐ž: Electric

๐Œ๐š๐ฑ ๐“๐ž๐ฆ๐ฉ๐ž๐ซ๐š๐ญ๐ฎ๐ซ๐ž (๐๐ž๐ ๐ซ๐ž๐ž ๐‚๐ž๐ฅ๐ฌ๐ข๐ฎ๐ฌ): 0-500 degree Celsius

๐Œ๐š๐ญ๐ž๐ซ๐ข๐š๐ฅ ๐‹๐จ๐š๐๐ข๐ง๐  ๐‚๐š๐ฉ๐š๐œ๐ข๐ญ๐ฒ: 500-1500 kg
